BOTTOM LOADING TANK TRUCK EQUIPMENT
MANHOLE ASSEMBLIES
SPECIAL PRODUCT HIGHLIGHTS
-
All models include a pressure vacuum vent installed in the flip cover
-
Laser cut and die to ensure consistency of shape and dimensions
-
Compatibility between the weld ring, gasket, and bass plate ensures the integrity of the sealing surface
-
Buns - N gaskets - additional materials available upon request
-
Spring-loaded pressure-activated fill cap provides emergency fire engulfment and venting
-
Australian drop test conducted for all models
-
Complies with EN13315 (fill cover) and EN13317 ( base cover )
-
20“ base plate for access compliance with ADR as well as secure 24-bolt fixing as required by ADR

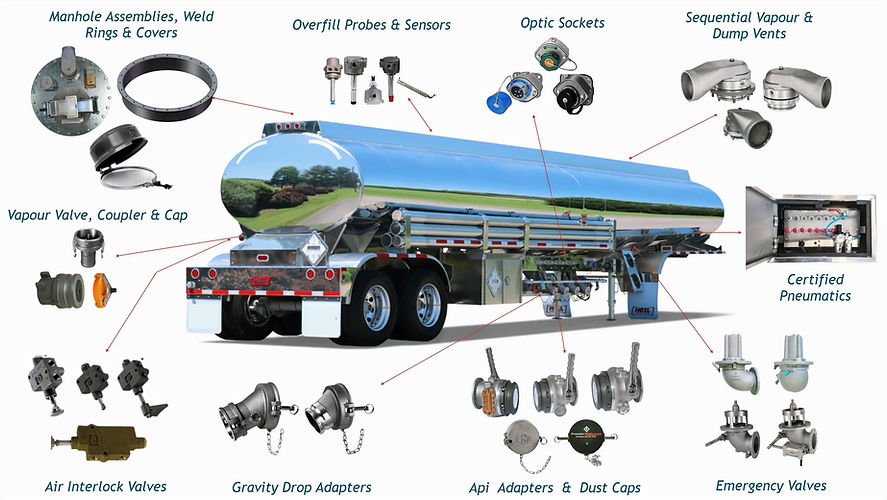

Location On The Truck
VAPOUR ADAPTOR, DUST CAP & COUPLER
SPECIAL PRODUCT HIGHLIGHTS
-
Use this vapour check valve to return vapour to the truck during terminal loading and service station drops.
-
The 3" poppet opens when coupled and closes when disconnected, preventing the vapours from escaping into the atmosphere.
-
Anodized Aluminium construction, Stainless steel stem and spring, Buna-N gasket & Aluminium guide.
-
Meets API RP 1004 standard.
-
These lockable vapour caps act like dust covers, but won’t activate the air interlock valve when used on vapour check valves and adapters.
-
Iron-copper infiltrated cams create a solid push-down-and-pull-up movement for quick, easy removal and replacement.
Location On The Truck
EMERGENCY BOTTOM VALVES
SPECIAL PRODUCT HIGHLIGHTS
-
High flow rate.
-
Fits standard 4" TTMA sump.
-
Shear section per TTMA, RP84-92, and
-
Meets DOT 49 CFR 178.345-8.
-
Force ratings from TTMA RP86-92.
-
Shear groove meets DOT 406 requirement.
-
High flow rate is established by a full opening throat area.
-
Ease of maintenance and prevents product pilferage.
-
Available in Victaulic or flanged versions.
-
Fluorocarbon O-ring
Location On The Truck
AIR INTERLOCK VALVES
SPECIAL PRODUCT HIGHLIGHTS
-
Play it safe with this lightweight valve that locks up the brakes on the trailer, preventing it from leaving the loading rack while connected to the loading arm.
-
This three-way air valve can be used normally open or normally closed.
-
Standardised TTMA and API mounting holes.
-
Heat-treated Anodised aluminum construction.
-
1⁄4" NPT connection ports.
-
Adjustable stem button.
Location On The Truck
API ADAPTORS & DUST CAPS
SPECIAL PRODUCT HIGHLIGHTS
-
Lightweight heavy-duty adaptor as per API 1004.
-
The outer coat is high-duty anodized (long-lasting).
-
Tapered inner wall: No product retention and very high flow rate.
-
All Seals are compatible with Biofuels.
-
API Adaptor: Designed in a way you can rotate the nose cone 7 times to maximise the life of the adaptor.
-
Internals are made of SS, Aluminium, and Bronze.
-
Our dust cap comes with an Aluminium casting with a forged brass cam (No Plastic is used).
Location On The Truck
OVERFILL PROBES & SENSORS
SPECIAL PRODUCT HIGHLIGHTS
-
Probe holders are anodised aluminium with 1⁄2" NPT openings positioned for easy access and wiring.
-
Three-bolt locking ring prevents probe movement and seals the housing from product splash and vapours.
-
For use with all EBW and other manufacturers’ probes.
-
All probes feature surface mount military spec electronic components.
-
Operating temperature range -40°F to +160°F
-
All probes are compatible with all existing rack monitors.
-
All overfill sensors are ATEX and PESO certified as well as UL listed
-
FMRC-approved for hazardous (classified) locations.
-
Overfill probes use a leakproof anodised aluminium tube with three seals that act as moisture and vapour barriers.
Location On The Truck
GRAVITY COUPLERS
SPECIAL PRODUCT HIGHLIGHTS
-
Let gravity do all the work with these high-strength, corrosion-resistant adapters. A 22.5-degree angle makes service station drops a breeze with easy hose coupling and fast, unrestricted off-loading.
-
Engineered to mate with API RP 1004 bottom-loading adapters, each adapter comes with a heavy-duty attachment chain and uses a large, resilient gasket that guarantees no product loss.
-
Heat-treated, anodised alloy body
-
Buna-N gaskets
-
Forged bronze cams / stainless steel pins
-
Meets API RP 1004 specifications
Location On The Truck
SEQUENTIAL VAPOUR VENTS
SPECIAL PRODUCT HIGHLIGHTS
-
Handle fuel vapours safely and efficiently with this lightweight aluminium vapour valve.
-
The air-operated valve allows fast vapour flow during loading and unloading.
-
The poppet is designed to open into the tank, preventing accidental leakage from product surges or from a tank truck rollover.
-
Easy-to-use air line connections are located outside the compartment for convenient installation and maintenance.
-
The 31/2" vapour valve comes with male NPT threads or a TTMA flange for installation in conventional 16" or 20" manholes.
Location On The Truck
OPTIC SOCKETS
SPECIAL PRODUCT HIGHLIGHTS
-
Single sockets are manufactured following API RP1004 and are compatible with all overfill monitor plugs.
-
These sockets are moisture-proof and have stainless steel contact pins in a bakelite housing.
-
Hard-coated aluminium faceplates and J-Slots are long-lasting and come standard with black/blue plastic caps.
Location On The Truck
